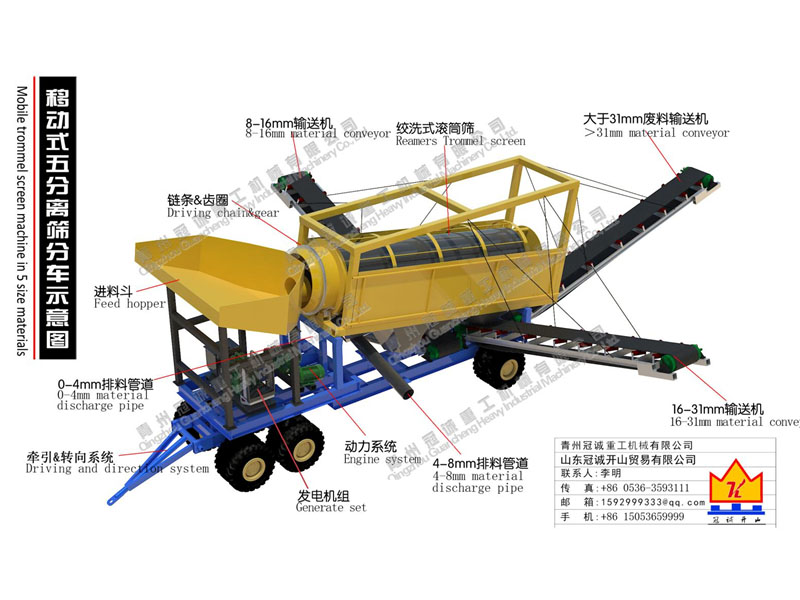

【移動式五分離篩分設備-篩沙機簡介】
本套設備為移動式五分離篩分設備，是我公司根據客戶需求進而研發設計而成；
本設備設計結構合理緊湊，發電機組集成在底盤上，附帶牽引&轉向系統，可以使用牽引車輛輕松移動至工作場地；其中篩分系統使用了新型核心技術的絞洗式滾筒篩，其優勢如下：
滾筒篩動力采用雙鏈條驅動設計，動能傳遞均勻、傳遞效率高，可以有效節省用電量；

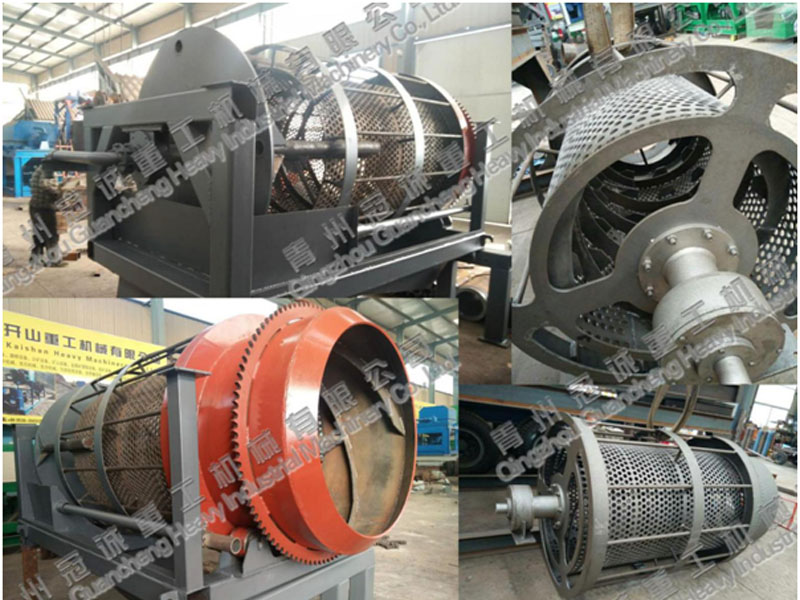

內層篩采用沖孔工藝制作，內含多條鉸刀從頭部覆蓋至尾部，能夠?qū)ξ锪线M(jìn)行充分絞洗脫泥，極大的提高了篩分效率；
滾筒篩供水系統采用中央供水+側供水方式，中央供水直沖滾筒篩底部物料；
側供水負責沖洗外層篩網，能夠有效防止外層篩網堵孔。

進料斗進料采用高壓水反沖系統，可以保證均勻進料；

出料系統采用五條輸送機進行排料。



Brief Introduction
This set of mobile screening machine in 5 size materials is according to customer’s requirement,designed and manufactured by our company;
The design of the equipment with new and reasonable and compact, the generate set is located on the truck chassis, with highly efficient driving and direction system, which can be easily moved to destination with driving car, in which the screening system with new type of reamers screening technology, the advantages are as follows:
The trommel screen with double chain driving design, the kinetic energy transfer uniform,transfer efficiency high,electricity consumption can be saved effectively;
The inner sieve is made by punching process, which contains reamers covering  all over from the head to end, which can fully wring the material and getting rid off the clay, which greatly improves the screening efficiency;
The water supplying system with central and sides water supplying,the central can swilling big size material;
The sides water supplying system to swill the screen mesh and can effectively prevent it from being plugged.

The feeding with high pressure water swilling the material which will be well distributed into trommel screen,the discharging with 5pcs transport conveyor.

【技術參數】
Technical parameter

名稱 Production Name		規格 Specification	數量 Quantity	功率/Kw Power	備注 Remark
移動式五分離心篩分設備 Mobile  screening machine In 5zize materials	底盤 Chasis	重型汽車底盤設計 Heavy truck/trailer chasis design 材質：25&30#工字鋼 Material: 25&30# 長度8.5m Length8.5m 三軸12條輪胎 3 axles 12 tyre	1套(Pcs)	-	含牽引&轉向系統 Including driving bar and direction system
	進料斗 Feed hopper	3.4*2.85米 材質：10#鋼板 3.4*2.85m,material:10# steel	1套(Pcs)	-
	滾筒篩 Reamers trommel screen	內徑1.3米，外徑1.6米， 凈篩網長度5米； Inner dia.:1.3m,outer dia.:1.6m,screen mesh 5m 內含多條鉸刀從頭部覆蓋至尾部； Including reamers all over the trommel screen 中央+側供水系統 Central and two sides water supplying	1套(Set)	7.5
	輸送機 Transport conveyor	動力采用齒輪組傳動 The engine system with driving gears	5條(Pcs)	5.5*5
	水泵 Water pump		1臺(Set)	7.5
總功率 Total power	42.5KW（建議使用75KW發電機組Advise to use generate set 75KW）
出廠價格 E.X.W. price	RMB：新價格來電索要15053659999(不含發電機組、稅與運費Excluding generate set,tax and ocean freight)

以上移動式五分離篩分設備可根據需要改為移動式三分離心篩分設備

 方案二為在方案一的基礎上把0-4mm與4-8mm兩條輸送機改為兩條?273排料管道。
Solution II base on solution I,the transport conveyor changed to be 2 pieces ?273 discharging pipes.

【技術參數】
Technical parameter

名稱 Production Name		規格 Specification	數量 Quantity	功率/Kw Power	備注 Remark
移動式五分離心篩分設備	底盤 Chasis	重型汽車底盤設計 材質：25&30#工字鋼 長度8.5m 三軸12條輪胎 Heavy truck/trailer chasis design Material: 25&30#Double-T steel Length8.5m 3 axles 12 tyre	1套(Set)	-	含牽引&轉向系統 Including driving bar and direction system
	進料斗 Feed hopper	3.4*2.85米 材質：10#鋼板	1套(Pcs)	-
	滾筒篩 Reamers trommel screen	內徑1.3米，外徑1.6米， 凈篩網長度5米； Inner dia.:1.3m,outer dia.:1.6m,screen mesh 5m 內含多條鉸刀從頭部覆蓋至尾部； Including reamers all over the trommel screen 中央+側供水系統 Central and two sides water supplying	1套(Set)	7.5
	排料管道 Discharging pipe	?273mm	2條(Pcs)	-
	輸送機 Transport coonveyor	動力采用齒輪組傳動 Engine system with driving gear	3條(Pcs)	5.5*3
	水泵 Water pump		1臺(Set)	7.5
總功率 Total power	31.5KW（建議使用50KW發電機組Advise to use generate set 50KW）
出廠價格 E.X.W. price	RMB：新價格來電詳詢(不含發電機組、稅與運費Not including generate set,tax and ocean freight)
